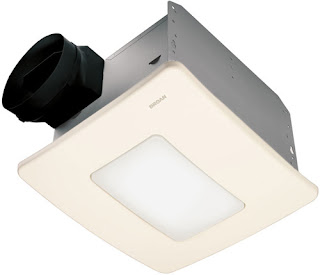

QTXE fan light
: Features
* For bathrooms up to 50 - 150 sq. ft.
For other rooms up to 65 - 165 sq. ft.
* Choose between 50 CFM to 150 CFM centrifugal blower
* Nearly silent operation <0.3 style="font-weight: bold;">
models
* Housing fits 2" x 8" construction
* 7-5/8” height allows for 2” x 8” (nominal) joist installation with sturdy, easy, four-point mounting directly to joists and unique spacer for mounting to engineered “I” joists
* Can be mounted in ceilings up to 12/12 pitch
* Left or right horizontal ducting options
* 6" duct connector included
* Type IC (Insulation Contact)
* Broan controls available (not included)
* UL, HVI Certified
* Designed to meet Energy Star Standards
* 120 v, 0.3 - 1.4 Amps, 39-53 Watts, 60 Hz
* 3 Year manufacturers warranty
* 15.8 - 16.2 Lbs.
* Ships via UPS
* This is an Eco-Friendly product
:: Description
The Broan QTXE Bathroom Ventilation Fans are designed for bathrooms up to 50-150 sq. ft. and for other rooms up to 65-165 sq. ft. The fan features a rugged 26-gauge galvanized steel fan housing and a grille made of durable steel reflector with a White finish. The fans are available with or without a light and come in 50, 80, 110 and 150 CFM. The lighted fans include a 26-watt, energy-efficient fluorescent bulb and a 4-watt nightlight. The fans are quiet, with <0.3 style="font-weight: bold;" size="3">
:: Optional Accessories
BR-685VL/WL - Three Function Control with Indicator:
Red light indicates power is on. Fits two gang box. 120V, 20 amp lighted switch; 120V, 15 amp each unlighted rocker switch (20 amp total).
Installation Instructions (pdf)
BR-69VL/69WL - Single Function Control with Indicator:
120V, 20 amps control with red light lets you know the power is on. Fits in a single gang box.
Installation Instructions (pdf)
BR-62V/W - 60 min. Time Control w/ Dual Rocker Switches: 60 min time control with two rocker switches.
Fits two gang box. 120V, 20 amp lighted switch; 120V, 15 amp each unlighted rocker switch (20 amp total); 120V 20 amp timer.
Installation Instructions (pdf)
* For bathrooms up to 50 - 150 sq. ft.
For other rooms up to 65 - 165 sq. ft.
* Choose between 50 CFM to 150 CFM centrifugal blower
* Nearly silent operation <0.3 style="font-weight: bold;">
models
* Housing fits 2" x 8" construction
* 7-5/8” height allows for 2” x 8” (nominal) joist installation with sturdy, easy, four-point mounting directly to joists and unique spacer for mounting to engineered “I” joists
* Can be mounted in ceilings up to 12/12 pitch
* Left or right horizontal ducting options
* 6" duct connector included
* Type IC (Insulation Contact)
* Broan controls available (not included)
* UL, HVI Certified
* Designed to meet Energy Star Standards
* 120 v, 0.3 - 1.4 Amps, 39-53 Watts, 60 Hz
* 3 Year manufacturers warranty
* 15.8 - 16.2 Lbs.
* Ships via UPS
* This is an Eco-Friendly product
:: Description
The Broan QTXE Bathroom Ventilation Fans are designed for bathrooms up to 50-150 sq. ft. and for other rooms up to 65-165 sq. ft. The fan features a rugged 26-gauge galvanized steel fan housing and a grille made of durable steel reflector with a White finish. The fans are available with or without a light and come in 50, 80, 110 and 150 CFM. The lighted fans include a 26-watt, energy-efficient fluorescent bulb and a 4-watt nightlight. The fans are quiet, with <0.3 style="font-weight: bold;" size="3">
:: Optional Accessories
BR-685VL/WL - Three Function Control with Indicator:Red light indicates power is on. Fits two gang box. 120V, 20 amp lighted switch; 120V, 15 amp each unlighted rocker switch (20 amp total).
Installation Instructions (pdf)
BR-69VL/69WL - Single Function Control with Indicator: 120V, 20 amps control with red light lets you know the power is on. Fits in a single gang box.
Installation Instructions (pdf)
BR-62V/W - 60 min. Time Control w/ Dual Rocker Switches: 60 min time control with two rocker switches. Fits two gang box. 120V, 20 amp lighted switch; 120V, 15 amp each unlighted rocker switch (20 amp total); 120V 20 amp timer.
Installation Instructions (pdf)
